    Commercial Marine Steering Systems

    Below you will find a list of the primary products and components that can be incorporated into a complete electronic or hydraulic steering system. Click on any item to expand the information available and to download a specification sheet on that product, if available.


    To obtain a quote on our hydraulic marine steering systems, please contact us at sales@kobelt.com.

    Kobelt has recently designed a line of tiller models to be used in conjunction with our newest
    line of Sentinel Series steering cylinders. The Sentinel Series tillers and cylinders are built for the toughest of applications, designed to meet IMO requirements and are Type Approved by major Class Societies, such as ABS, BV and LR. Download our system sheet to learn more.

    Kobelt_ComprehensiveSteering_v7

    Marine Steering Cylinders

    Search Results

    Showing results for: "cylinders" in "All Products"

    7800 Sentinel Series Steering Cylinders

    Kobelts newest line of steering cylinders are designed for...

    • Design Pres. 2000 psi [138 bar]
    • Bore Dia. 2.5" [63.5 mm], 3.5" [88.9 mm], 4.5" [114.3 mm]
    • Rod Dia.  1.25" [31.8 mm], 1.75" [44.5 mm], 2.25" [57.2 mm]
    • Stroke: from 10" [254 mm] to 24" [609.6 mm]

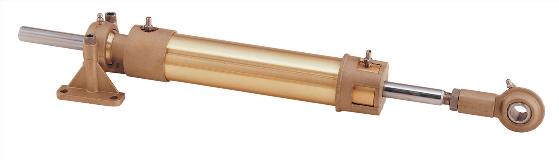

    7040 Steering Cylinder

    The 7040 steering cylinder is a durable, solid cylinder that...

    • Design Pres. 1500 psi [103 bar]
    • Bore Dia. 1.50" [38.1 mm]
    • Rod Dia.  0.63" [15.9 mm]
    • Stroke: from 3.75" [95.3 mm] to 12.00" [304.8 mm]

    7050 Steering Cylinder

    The 7050 steering cylinder is a durable, solid cylinder that...

    • Design Pres. 1500 psi [103 bar]
    • Bore Dia. 2.00" [50.8 mm]
    • Rod Dia.  0.75" [19.1 mm]
    • Stroke: from 7.50" [190.5 mm] to 12.00" [304.8 mm]

    7065 Steering Cylinder

    The 7065 steering cylinder is a durable, solid cylinder that...

    • Design Pres. 1500 psi [103 bar]
    • Bore Dia. 2.50" [63.5 mm]
    • Rod Dia.  1.00" [25.4 mm]
    • Stroke: from 7.50" [190.5 mm] to 16.00" [406.4 mm]

    7248 Full Follow-up Steering Module

    New and Improved... The Kobelt 7248 full follow-up power...

    7065-SB Power Assist Steering Cylinder

    The 7065-SB steering cylinder provides power assisted...

    • Design Pres. 1500 psi [103 bar]
    • Bore Dia. 2.50" [63.5 mm]
    • Rod Dia.  1.00" [25.4 mm]
    • Stroke: from 7.50" [190.5 mm] to 16.00" [406.4 mm]

    7067 - Steering Cylinder

    The 7067 steering cylinder is a durable, solid cylinder that...

    • Design Pres. 2000 psi [138 bar]
    • Bore Dia. 2.50" [63.5 mm]
    • Rod Dia.  1.25" [31.8 mm]
    • Stroke: from 10" [254 mm] to 20" [508 mm]

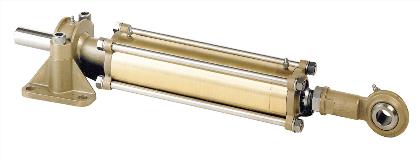

    7080 Steering Cylinder

    The 7080 steering cylinder is a durable, solid cylinder that...

    • Design Pres. 1500 psi [103 bar]
    • Bore Dia. 3.00" [76.2 mm]
    • Rod Dia.  1.25" [31.8 mm]
    • Stroke: from 10.00" [254.0 mm] to 16.00" [406.4 mm]

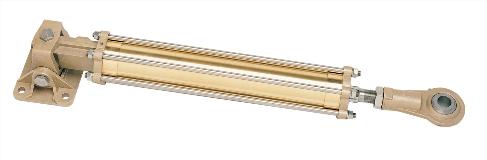

    7085 Steering Cylinder

    The 7085 steering cylinder is a durable, solid cylinder that...

    • Design Pres. 1000 psi [69 bar]
    • Bore Dia. 3.50" [88.9 mm]
    • Rod Dia.  1.50" [38.1 mm]
    • Stroke: from 10.00" [254 mm] to 20.00" [508 mm]

    7085-S Power Assist Steering Cylinder

    The 7085-S power-assisted steering cylinder is equipped with...

    • Design Pres. 1000 psi [69 bar]
    • Bore Dia. 3.50" [88.9 mm]
    • Rod Dia.  1.50" [38.1 mm]
    • Stroke: from 10.00" [254 mm] to 20.00" [508 mm]

    7087 - Steering Cylinder

    The 7087 steering cylinder is a durable, solid cylinder that...

    • Design Pres. 2000 psi [138 bar]
    • Bore Dia. 3.50" [88.9 mm]
    • Rod Dia.  1.75" [44.5 mm]
    • Stroke: from 12" [304.8 mm] to 28" [711.2 mm]

    7090 - Steering Cylinder

    The 7090 steering cylinder is a durable, solid cylinder that...

    • Design Pres. 2000 psi [138 bar]
    • Bore Dia. 4.50" [114.3 mm]
    • Rod Dia.  2.25" [57.2 mm]
    • Stroke: from 16" [406.4 mm] to 32" [812.8 mm]

    7093 Steering Cylinder

    The 7093 steering cylinder is a durable, solid cylinder that...

    • Design Pres. 1000 psi [69 bar]
    • Bore Dia. 4.00" [101.6 mm]
    • Rod Dia.  1.75" [44.5 mm]
    • Stroke: from 12" [304.8 mm] to 24" [609.6 mm]

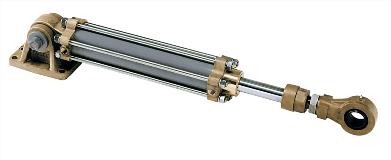

    7094DL - Steering Cylinder

    The 7094 steering cylinder is a durable, solid cylinder that...

    • Design Pres. 2000 psi [138 bar]
    • Bore Dia. 4.00" [101.6 mm]
    • Rod Dia.  2.00" [50.8 mm]
    • Stroke: from 12" [304.8 mm] to 30" [762.0 mm]

    7095D - Steering Cylinder

    The 7095D steering cylinder is a durable, solid cylinder...

    • Design Pres. 2000 psi [138 bar]
    • Bore Dia. 5.00" [127.0 mm]
    • Rod Dia.  2.50" [63.5 mm]
    • Stroke: from 16" [406.4 mm] to 30" [762.0 mm]

    7096D - Steering Cylinder

    The 7096D steering cylinder is a durable, solid cylinder...

    • Design Pres. 2000 psi [138 bar]
    • Bore Dia. 6.00" [152.4 mm]
    • Rod Dia.  3.00" [76.2 mm]
    • Stroke: from 16" [406.4 mm] to 36" [914.4 mm]

    7097D - Steering Cylinder

    The 7097D steering cylinder is a durable, solid cylinder...

    • Design Pres. 2000 psi [138 bar]
    • Bore Dia. 7.00" [177.8 mm]
    • Rod Dia.  3.50" [88.9 mm]
    • Stroke: from 24" [609.6 mm] to 48" [1219.2 mm]

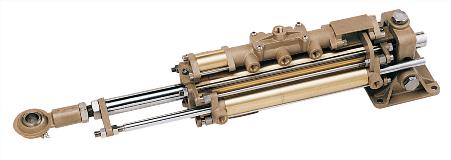

    7147 Power Assist Steering Cylinder

    The 7147 is a compact but powerful cylinder that can be...

    • Design Pres. 1000 psi [69 bar]
    • Bore Dia. 2.00" [50.8 mm]
    • Rod Dia.  1.00" [25.4 mm]
    • Stroke: from 7.5" [190.5 mm] to 12.00" [304.8 mm]
